 ACCESEORIES

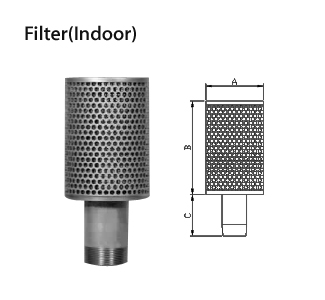

 PART






  A

B

C APPLICATION
1 1/4"
(32A)
100 162 72 HRB-100,101
HRB-102~302
HRB-102/1~302/1
1 1/2"
(40A)
100 162 130 HRB-200,201,200I
HRB-402(S)
HRB-402(S)/1
2"
(50A)
115 162 78 HRB-301~501
HRB-300~700
HRB-502~1002
2 1/2"
(65A)
150 252 52 HRB-750
HRB-800~1000
HRB-1102,1202
3"
(80A)
150 252 52 HRB-750
HRB-800~1000(Option)
HRB-1110
HRB-1112,1212
4"
(100A)
150 252 62 HRB-1110
HRB-1100~1300
HRB-1302~1602
5"
(125A)
230 252 88 HRB-1100~1300,
HRB-1503~1703

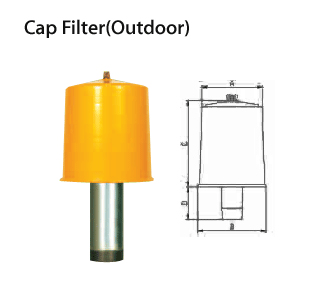

  A

B

C D APPLICATION
1 1/4"
(32A)
122 138 175 66 HRB-100,101
HRB-102~302
HRB-102/1~302/1
1 1/2"
(40A)
122 138 175 130 HRB-200,201,200I
HRB-402(S)
HRB-402(S)/1
2"
(50A)
145 164 175 81 HRB-301~501
HRB-300~700
HRB-502~1002
2 1/2"
(65A)
183 202 276 118 HRB-750
HRB-800~1000
HRB-1102,1202
3"
(80A)
183 202 276 55 HRB-750
HRB-800~1000(Option)
HRB-1110
HRB-1112,1212
4"
(100A)
184 200 279 50 HRB-1110
HRB-1100~1300
HRB-1302~1602

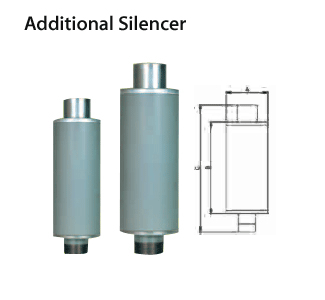

  A

B

C APPLICATION
1 1/4"
(32A)
100 222 306 HRB-100,101
HRB-102~302
HRB-102/1~302/1
1 1/2"
(40A)
100 222 304 HRB-200,201,200I
HRB-402(S)
HRB-402(S)/1
2"
(50A)
120 283 383 HRB-301~501
HRB-300~700
HRB-502~1002
2 1/2"
(65A)
150 401 511 HRB-750
HRB-800~1000
HRB-1102,1202
3"
(80A)
154 440 555 HRB-750
HRB-800~1000(Option)
HRB-1110
HRB-1112,1212
4"
(100A)
185 443 589 HRB-1110
HRB-1100~1300
HRB-1302~1602

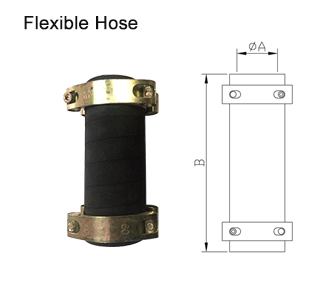

  A

B

APPLICATION
1 1/2"
(40A)
48 180 HRB-200,201,200I
HRB-402/1,402S,402
2"
(50A)
60 200 HRB-300,400,500,600,700
HRB-301,401,501
HRB-502,602,702,802,902,1002
2 1/2"
(65A)
75 200 HRB-750,800,900,1000
HRB-1102,1202

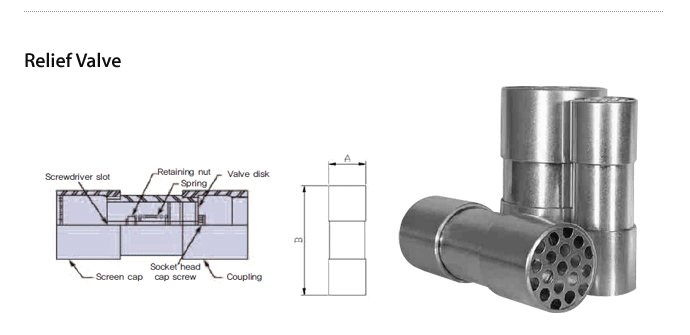

A()

B()
1 1/2" 55.3 156.9 HRB-200,201,HRB-402,402S,402/1
2" 68.4 186.4 HRB-300~700,HRB-502~1002
3" 93.6 163.2 HRB-800~1000,HRB-1102,1202,1112,1212



Max, Press, mmAq

  60Hz 50Hz
1 1/2" 1200 900
2" 2000 1700
3" 2600 2400



Max, Vacuum, mmAq

  60Hz 50Hz
1 1/2" 1100 800
2" 2000 1500
3" 2600 1900
