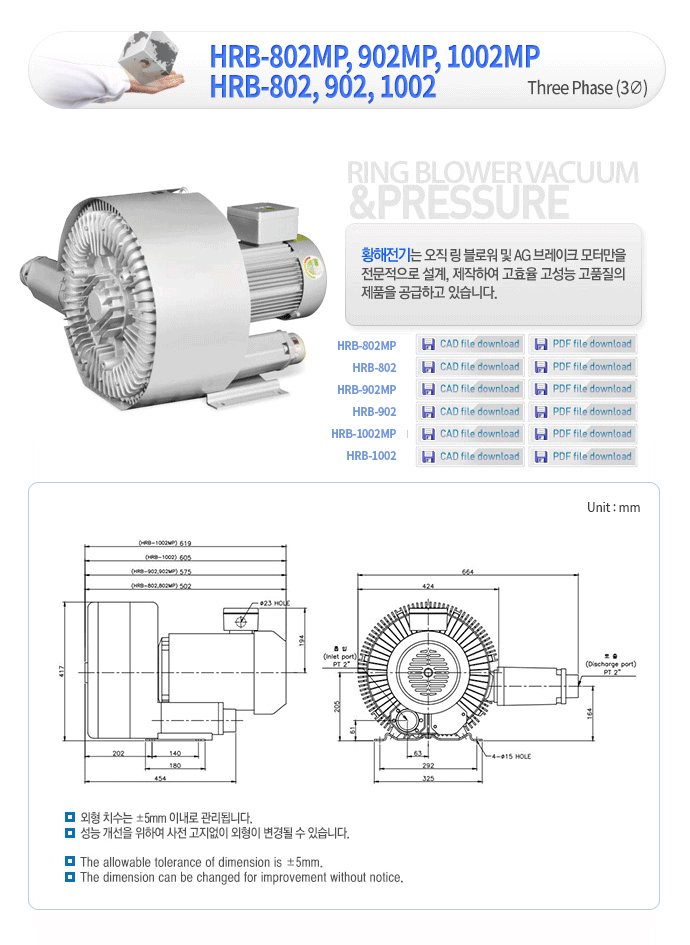

  HRB-802MP HRB-802 HRB-902MP HRB-902 HRB-1002MP HRB-1002
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 6.0 5.3 6.0 - 8.4 7.5 8.4 - 11.5 10.0 11.5
Kw - 4.5 4.0 4.5 - 6.3 5.5 6.3 - 8.6 7.5 8.6
ÅäÃâ PRESSURE mmAq - 3700 3500 3700 - 5200 5000 5200 - 6000 5500 6000
ÈíÀÔ
VACUUM		 mmAq - 3500 3000 3500 - 4300 4000 4300 - 4500 4300 4500
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 6.1 5.2 6.1 - 6.1 5.2 6.1 - 6.1 5.2 6.1
Àü·ù
CURRENT		 220V A - 20.0 17.0 17.0 - 26.8 22.0 22.0 - 34.7 31.21 31.2
380V A - 11.5 9.8 9.8 - 15.5 12.7 12.7 - 20.0 18.0 18.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 80 80 80 80 80 80
ÀçÁú
MATERIAL		 IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
º£¾î¸µ BEARING FRONT 6206ZC3 6206ZC3 6206ZC3 6206ZC3 6206ZC3 6206ZC3
MIDDLE 6007ZC3 6007ZC3 6207ZC3 6207ZC3 6207ZC3 6207ZC3
REAR 6305ZC3 6305ZC3 6208ZC3 6208ZC3 6208ZC3 6208ZC3
¹«°Ô
WEIGHT		 Kg 57 57 81 81 104 104
±âµ¿°è±Þ
STARTING CLASS		 K K K K K K
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F
