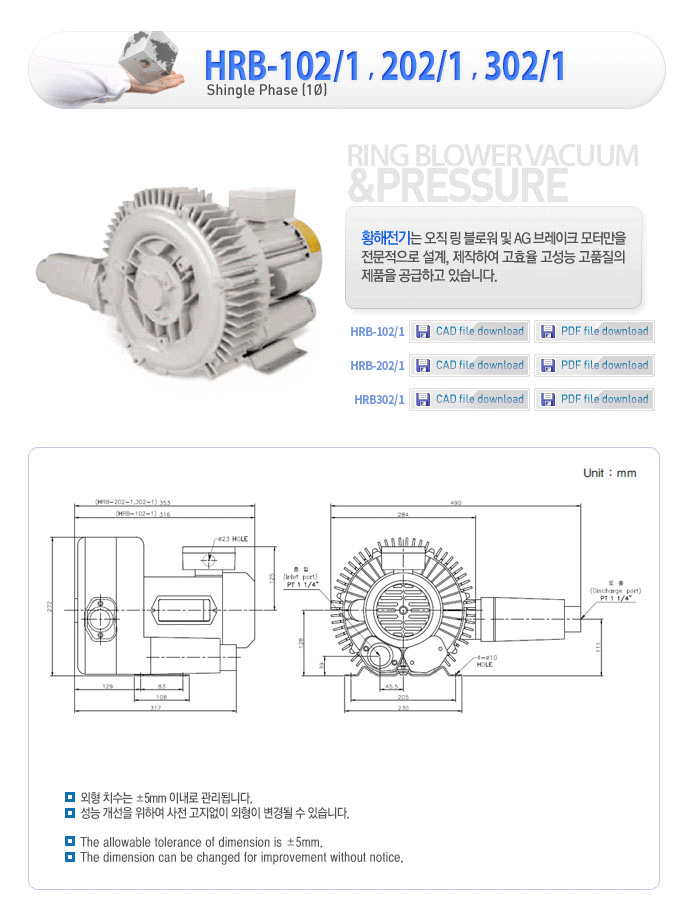

  HRB-102/1 HRB-202/1 HRB-302/1
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 1 1 1
¸ðÅÍ MOTOR HP 0.4 0.5 0.85 1.0 1.2 1.5
Kw 0.33 0.4 0.63 0.75 0.9 1.1
ÅäÃâ PRESSURE mmAq 1200 1200 2100 2100 2100 2500
ÈíÀÔ VACUUM mmAq 1000 1000 1700 1700 2000 2000
ÃÖ´ëdz·®
MAX . AIR FLOW		 §©/min 1.4 1.65 1.4 1.65 1.4 1.65
Àü·ù CURRENT 220V A 3.6 3.8 4.4 5.3 4.8 6.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 68 68 68
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum Aluminum
CASING Aluminum Aluminum Aluminum
º£¾î¸µ BEARING FRONT 6203ZC3 6203ZC3 6203ZC3
MIDDLE - - -
REAR 6203ZZC3 6203ZZC3 6203ZZC3
¹«°Ô WEIGHT Kg 18 20 23
Àý¿¬°è±Þ INSULATION CLASS F F F
