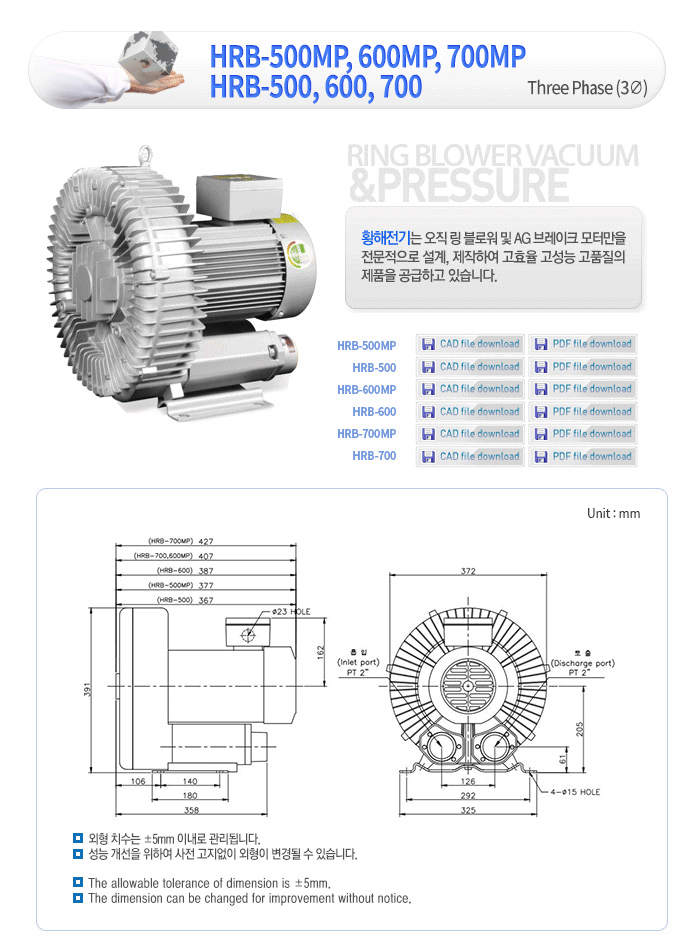

  HRB-500MP HRB-500 HRB-600MP HRB-600 HRB-700MP HRB-700
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3
¸ðÅÍ MOTOR HP - 3.4 3.0 3.4 - 5.0 4.0 5.0 - 6.0 5.3 6.0
Kw - 2.55 2.2 2.55 - 3.7 3.0 3.7 - 4.5 4.0 4.5
ÅäÃâ

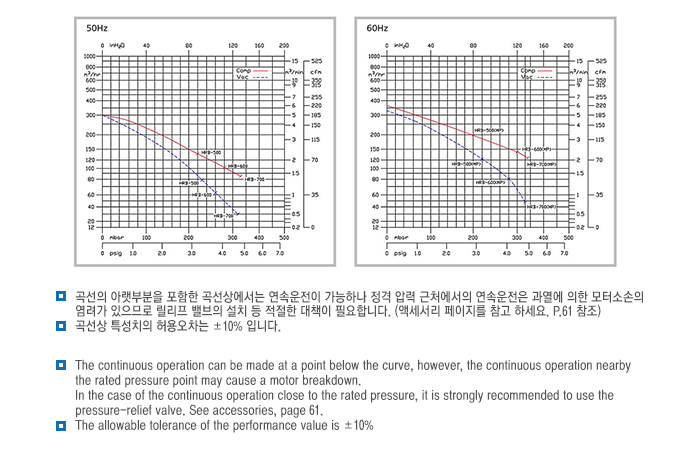

PRESSURE		 mmAq - 2000 2200 2000 - 3000 2800 3000 - 3400 3300 3400
ÈíÀÔ VACUUM mmAq - 2200 2300 2200 - 2800 2600 2800 - 3300 3200 3300
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 6.0 5.0 6.0 - 6.0 5.0 6.0 - 6.0 5.0 6.0
Àü·ù
CURRENT		 220V A - 12.1 13.0 12.1 - 12.6 13.5 14.0 - 17.0 16.6 17.0
380V A - 7.0 7.5 7.0 - 7.3 7.8 8.1 - 9.8 9.6 9.8
¼ÒÀ½
SOUND LEVEL		 dB(A) 76 76 76 76 76 76
ÀçÁú
MATERIAL		 IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
º£¾î¸µ
BEARING		 FRONT 6206ZC3 6206ZC3 6206ZC3 6206ZC3 6206ZC3 6206ZC3
MIDDLE - - - - - -
REAR 6205ZC3 6205ZC3 6205ZC3 6205ZC3 6205ZC3 6205ZC3
¹«°Ô
WEIGHT		 Kg 38 38 42 42 46 46
±âµ¿°è±Þ
STARTING CLASS		 K K K K K K
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F
