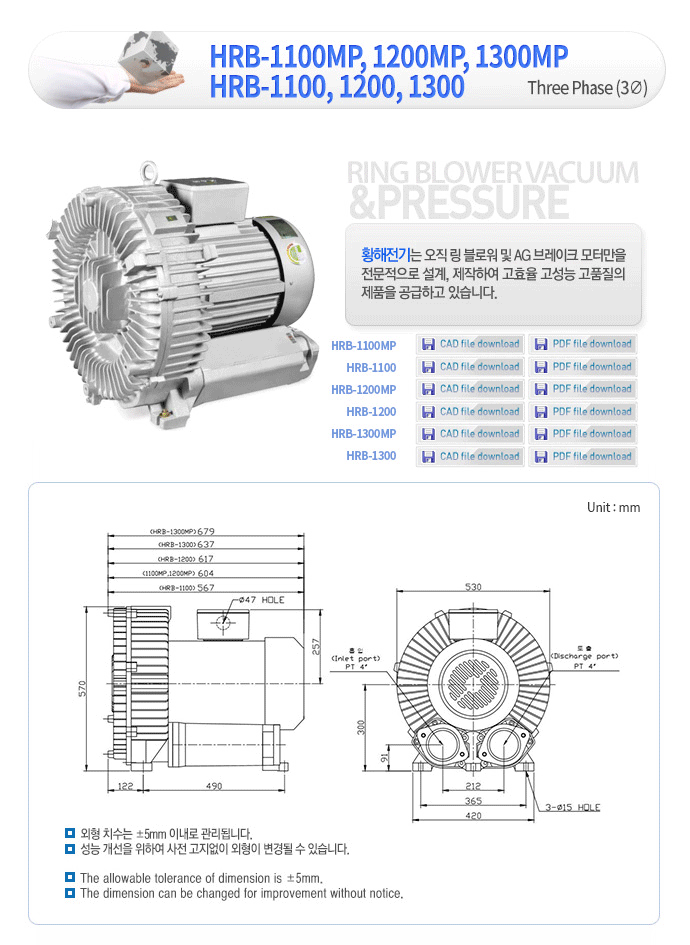

  HRB-1100MP HRB-1100 HRB-1200MP HRB-1200 HRB-1300MP HRB-1300
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 16.8 15.0 16.8 - 20.7 17.5 20.4 - 30.0 24.7 30.0
Kw - 12.6 11.0 12.6 - 15.5 13.0 15.3 - 22.7 18.5 22.7

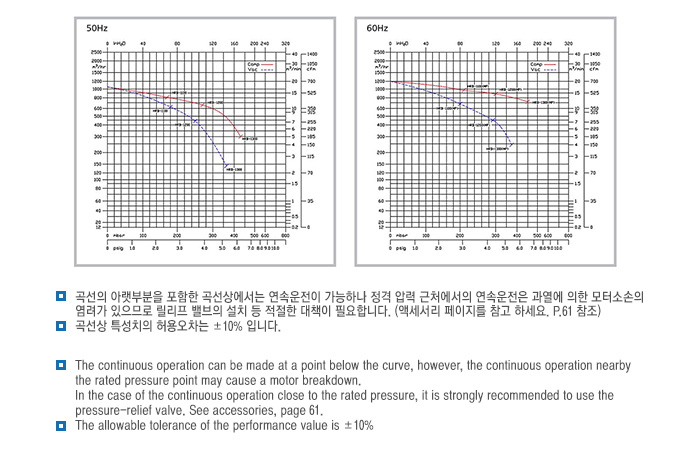

ÅäÃâ PRESSURE mmAq - 2100 1700 2100 - 3000 2700 3000 - 4500 4300 4500
ÈíÀÔ
VACUUM		 mmAq - 2000 1800 2000 - 2900 2500 2900 - 3800 3600 3800
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 20.0 17.0 20.0 - 20.0 17.0 20.0 - 20.0 17.0 20.0
Àü·ù
CURRENT		 220V A - 38.1 31.2 40.0 - 52.0 43.3 54.0 - 69.3 65.0 69.3
380V A - 22.0 18.0 23.1 - 30.0 25.0 31.2 - 40.0 37.5 40.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 82 82 82 82 82 82
ÀçÁú
MATERIAL		 IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
º£¾î¸µ BEARING FRONT 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
MIDDLE - - - - - -
REAR 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
¹«°Ô
WEIGHT		 Kg 260 260 260 260 275 275
±âµ¿°è±Þ
STARTING CLASS		 H H H H H H
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F
