 PART

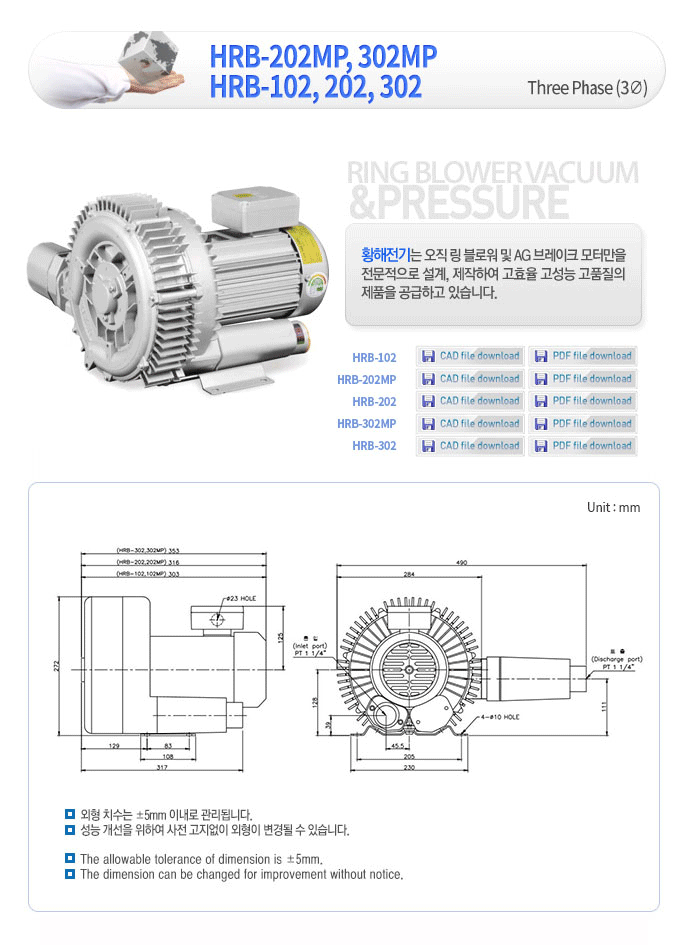

  HRB-102 HRB-202MP HRB-202 HRB-302MP HRB-302
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP 0.5 0.7 - 1.2 1.0 1.2 - 2.0 1.5 2.0
Kw 0.4 0.5 - 0.93 0.75 0.93 - 1.5 1.1 1.5
ÅäÃâ PRESSURE mmAq 1200 1500 - 2500 2000 2500 - 3000 2700 3000
ÈíÀÔ
VACUUM		 mmAq 1000 1000 - 2000 1500 2000 - 2200 2000 2200
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min 1.4 1.65 - 1.65 1.4 1.65 - 1.65 1.4 1.65
Àü·ù
CURRENT		 220V A 2.4 2.6 - 4.2 4.0 4.2 - 4.8 4.8 5.2
380V A 1.4 1.5 - 2.4 2.3 2.4 - 2.8 2.8 3.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 68 68 68 68 68
ÀçÁú
MATERIAL		 IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Aluminum Aluminum Aluminum Aluminum Aluminum
º£¾î¸µ BEARING FRONT 6203ZC3 6203ZC3 6203ZC3 6203ZC3 6203ZC3
MIDDLE - - - - -
REAR 6203ZZC3 6203ZZC3 6203ZZC3 6203ZZC3 6203ZZC3
¹«°Ô
WEIGHT		 Kg 15 18 18 20 20
±âµ¿°è±Þ
STARTING CLASS		 K K K K K
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F
