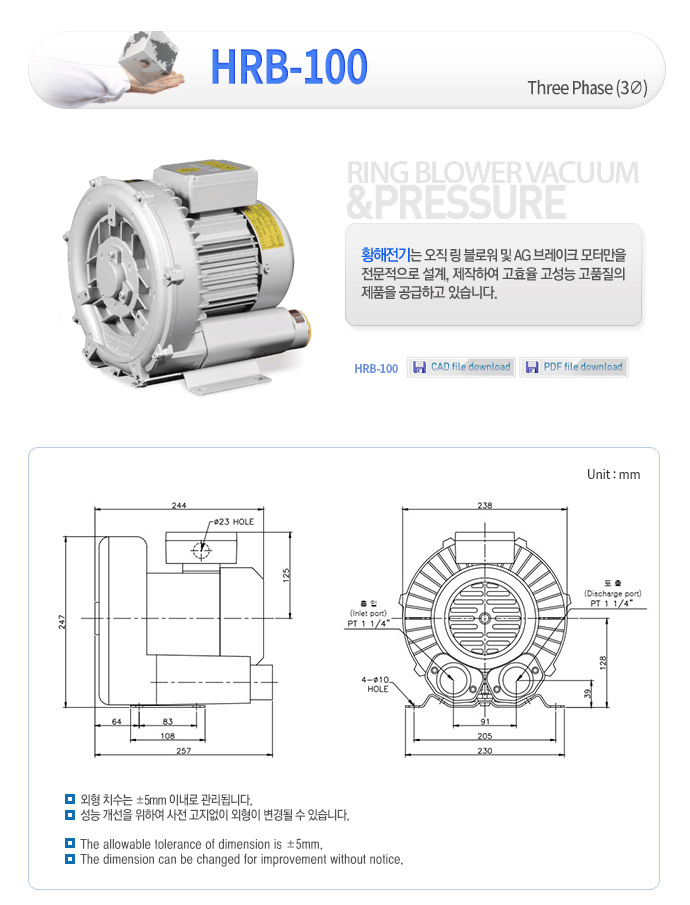

HRB-100 |
| 50Hz |
60Hz |
| »ó PHASE |
3 |
| ¸ðÅÍ MOTOR |
HP |
0.5 |
0.7 |
| Kw |
0.4 |
0.5 |
| ÅäÃâ PRESSURE |
mmAq |
1200 |
1300 |
| ÈíÀÔ VACUUM |
mmAq |
1000 |
1200 |
| ÃÖ´ëdz·® MAX . AIR FLOW |
§©/min |
1.3 |
1.4 |
| Àü·ù CURRENT |
220v |
A |
2.5 |
2.4 |
| 380v |
A |
1.45 |
1.4 |
| ¼ÒÀ½ SOUND LEVEL |
dB(A) |
64 |
| ÀçÁú MATERIAL |
IMPELLER |
Aluminum |
| CASING |
Aluminum |
| º£¾î¸µ BEARING |
FRONT |
6203ZC3 |
| MIDDLE |
- |
| REAR |
6203ZZC3 |
| ¹«°Ô WEIGHT |
Kg |
11.5 |
| ±âµ¿°è±Þ STARTING CLASS |
G |
| Àý¿¬°è±Þ INSULATION CLASS |
F |
|
 |
 |
 |
| |
| |
| |
| |
|
|
