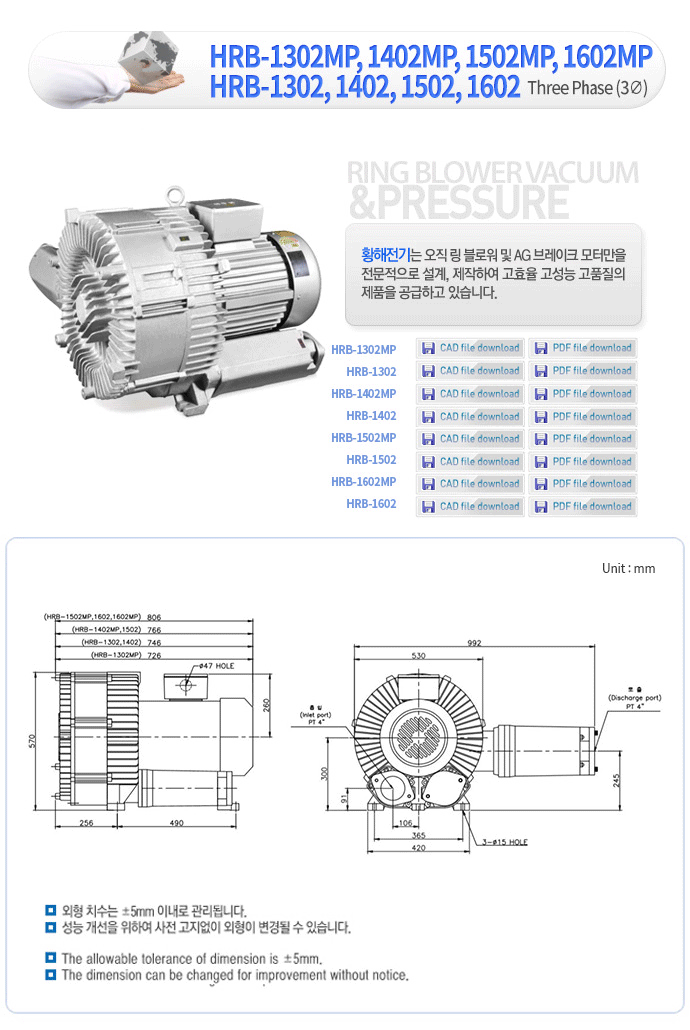

  HRB-1302MP HRB-1302 HRB-1402MP HRB-1402 HRB-1502MP HRB-1502 HRB-1602MP HRB-1602
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 20.7 17.5 20.4 - 24.7 20.7 24.7 - 34.4 29.3 35.7 - 40.0 33.0 40.0
Kw - 15.5 13.0 15.3 - 18.5 15.5 18.5 - 25.8 22.0 26.8 - 30.0 25.0 30.0
ÅäÃâ
PRESSURE		 mmAq - 2500 2200 2500 - 3500 3000 3500 - 4800 4800 4800 - 5500 5500 5500
ÈíÀÔ
VACUUM		 mmAq - 2700 2500 2700 - 3200 3000 3200 - 4800 4500 4800 - 5000 5000 5000
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 22.0 17.5 22.0 - 22.0 17.5 22.0 - 22.0 17.5 22.0 - 22.0 17.5 22.0
Àü·ù
CURRENT		 220V A - 49.4 54.0 54.0 - 59.8 65.5 65.5 - 80.0 76.0 82.0 - 88.2 86.0 86.6
380V A - 28.5 31.2 31.2 - 34.5 37.5 37.5 - 46.0 43.9 47.3 - 51.0 51.6 50.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 88 88 88 88 88 88 88 88
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
º£¾î¸µ
BEARING		 FRONT 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
MIDDLE - - - - - - - -
REAR 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
¹«°Ô
WEIGHT		 Kg 330 330 345 345 345 355 365 365
±âµ¿°è±Þ
STARTING CLASS		 H H H H H H H H
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F F F
