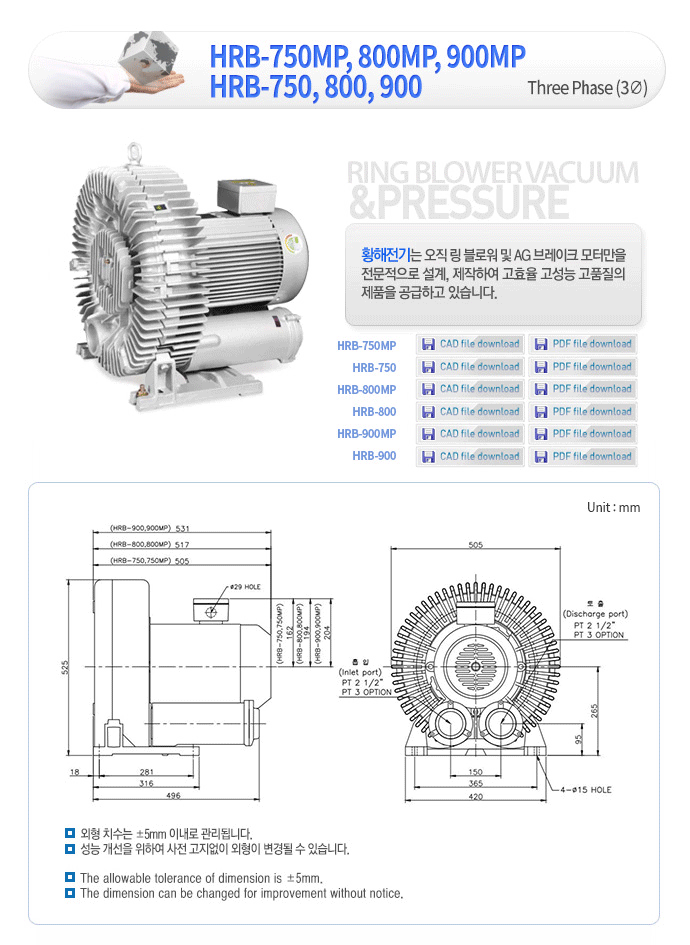

  HRB-750MP HRB-750 HRB-800MP HRB-800 HRB-900MP HRB-900
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 6.0 5.3 6.0 - 8.4 7.5 8.4 - 11.5 10 11.5
Kw - 4.5 4.0 4.5 - 6.3 5.5 6.3 - 8.6 7.5 8.6
ÅäÃâ
PRESSURE		 mmAq - 2000 2000 2000 - 3000 2800 3000 - 4500 3700 4500
ÈíÀÔ VACUUM mmAq - 2200 2000 2000 - 3100 2700 3100 - 3500 3000 3500
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 10.0 8.5 10.0 - 10.0 8.4 10.0 - 10.0 8.4 10.0
Àü·ù
CURRENT		 220V A - 17.0 14.3 17.3 - 21.1 18.5 26.0 - 17.0 29.0 33.0
380V A - 9.8 8.3 10.0 - 12.2 10.7 15.0 - 9.8 16.7 19.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 78 78 78 78 78 78
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
º£¾î¸µ
BEARING		 FRONT 6207ZC3 6207ZC3 6207ZC3 6207ZC3 6207ZC3 6207ZC3
MIDDLE - - - - - -
REAR 6205ZC3 6205ZC3 6307ZC3 6307ZC3 6307ZC3 6307ZC3
¹«°Ô
WEIGHT		 Kg 92 92 140 140 150 150
±âµ¿°è±Þ
STARTING CLASS		 G G G G K K
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F
