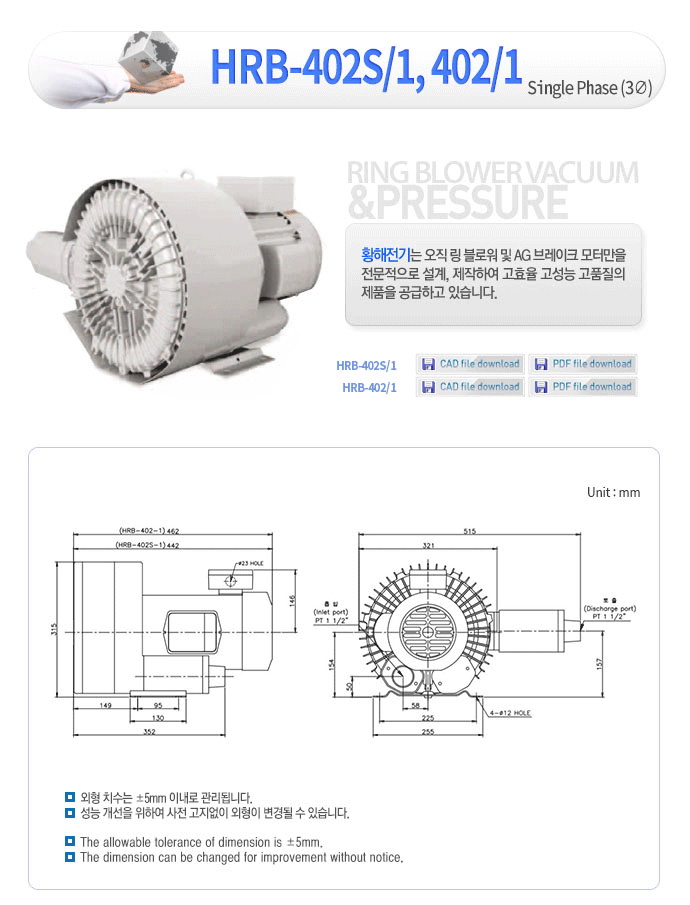

HRB-402S/1 |
HRB-402/1 |
| 50Hz |
60Hz |
50Hz |
60Hz |
| »ó PHASE |
1 |
1 |
| ¸ðÅÍ MOTOR |
HP |
1.5 |
2.0 |
2.5 |
3.0 |
| Kw |
1.1 |
1.5 |
1.83 |
2.2 |
| ÅäÃâ PRESSURE |
mmAq |
2500 |
2500 |
3500 |
3500 |
| ÈíÀÔ VACUUM |
mmAq |
2300 |
2400 |
2500 |
2600 |
| ÃÖ´ëdz·®
MAX . AIR FLOW |
§©/min |
2.5 |
3.2 |
2.5 |
3.2 |
| Àü·ù CURRENT |
220v |
A |
11.8 |
12.5 |
12.8 |
15.5 |
| ¼ÒÀ½ SOUND LEVEL |
dB(A) |
75 |
75 |
| ÀçÁú MATERIAL |
IMPELLER |
Aluminum |
Aluminum |
| CASING |
Aluminum |
Aluminum |
| º£¾î¸µ BEARING |
FRONT |
6204ZC3 |
6204ZC3 |
| MIDDLE |
6006ZC3 |
6006ZC3 |
| REAR |
6305ZC3 |
6305ZC3 |
| ¹«°Ô WEIGHT |
Kg |
37 |
39 |
| Àý¿¬°è±Þ INSULATION CLASS |
F |
F |
|
 |
 |
 |
| |
| |
| |
| |
|
|
