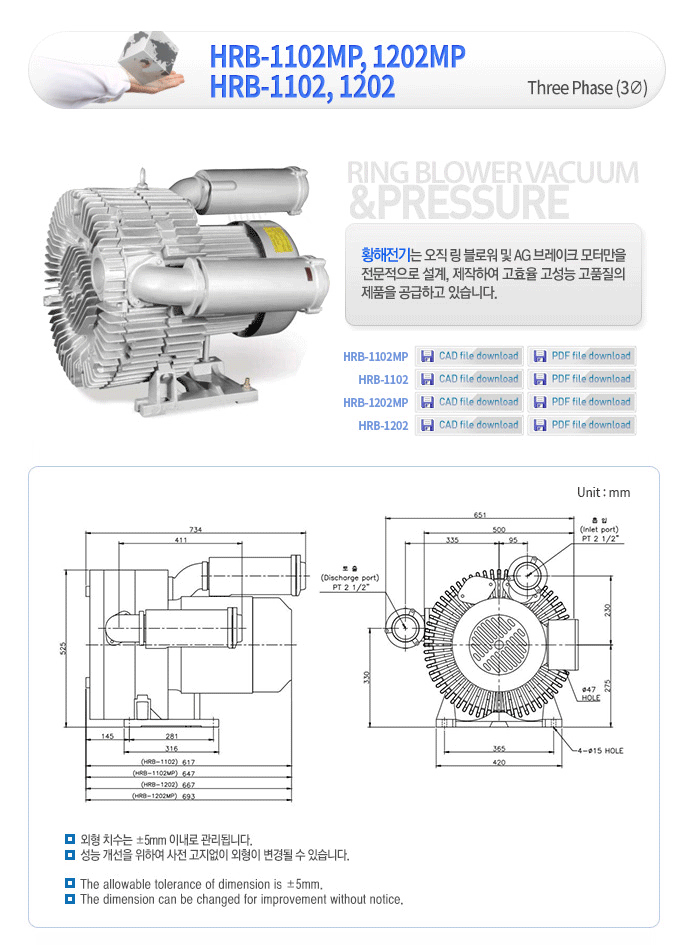

  HRB-1102MP HRB-1102 HRB-1202MP HRB-1202
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 16.8 15.0 16.8 - 23.0 20.0 23.0
Kw - 12.6 11.0 12.6 - 17.3 15.0 17.3
ÅäÃâ PRESSURE mmAq - 6200 5500 6200 - 7200 6500 7200
ÈíÀÔ
VACUUM		 mmAq - 4300 4000 4300 - 4800 4500 4800
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 9.5 8.0 9.5 - 9.5 8.0 9.5
Àü·ù
CURRENT		 220V A - 45.0 40.0 50.2 - 50.2 40.7 56.0
380V A - 26.0 23.1 29.0 - 29.0 23.5 32.3
¼ÒÀ½
SOUND LEVEL		 dB(A) 82 82 82 82
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum Aluminum Aluminum
CASING Cast Iron Cast Iron Cast Iron Cast Iron
º£¾î¸µ BEARING FRONT 6207ZC3 6207ZC3 6207ZC3 6207ZC3
MIDDLE - - - -
REAR 6308ZC3 6308ZC3 6308ZC3 6308ZC3
¹«°Ô
WEIGHT		 Kg 240 240 250 250
±âµ¿°è±Þ
STARTING CLASS		 K K K K
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F
