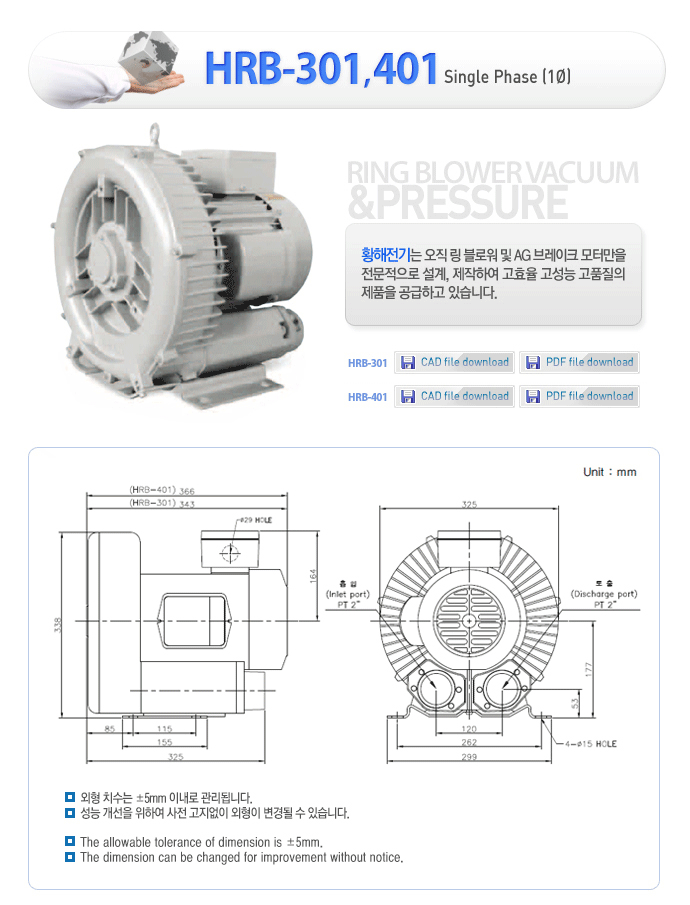

  HRB-301 HRB-401
50Hz 60Hz 50Hz 60Hz
»ó PHASE 1 1
¸ðÅÍ MOTOR HP 1.5 2.0 2.5 3.0
Kw 1.1 1.5 1.83 2.2
ÅäÃâ PRESSURE mmAq 1800 1800 2200 2800
ÈíÀÔ VACUUM mmAq 1600 1600 1800 2000
ÃÖ´ëdz·® MAX . AIR FLOW §©/min 3.2 4.0 3.2 4.0
Àü·ù CURRENT 220V A 11.5 12.5 12.0 19.0
¼ÒÀ½ SOUND LEVEL dB(A) 75 75
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum
CASING Aluminum Aluminum
º£¾î¸µ BEARING FRONT 6205ZC3 6205ZC3
MIDDLE - -
REAR 6205ZZC3 6205ZZC3
¹«°Ô WEIGHT Kg 33 35
Àý¿¬°è±Þ INSULATION CLASS F F
