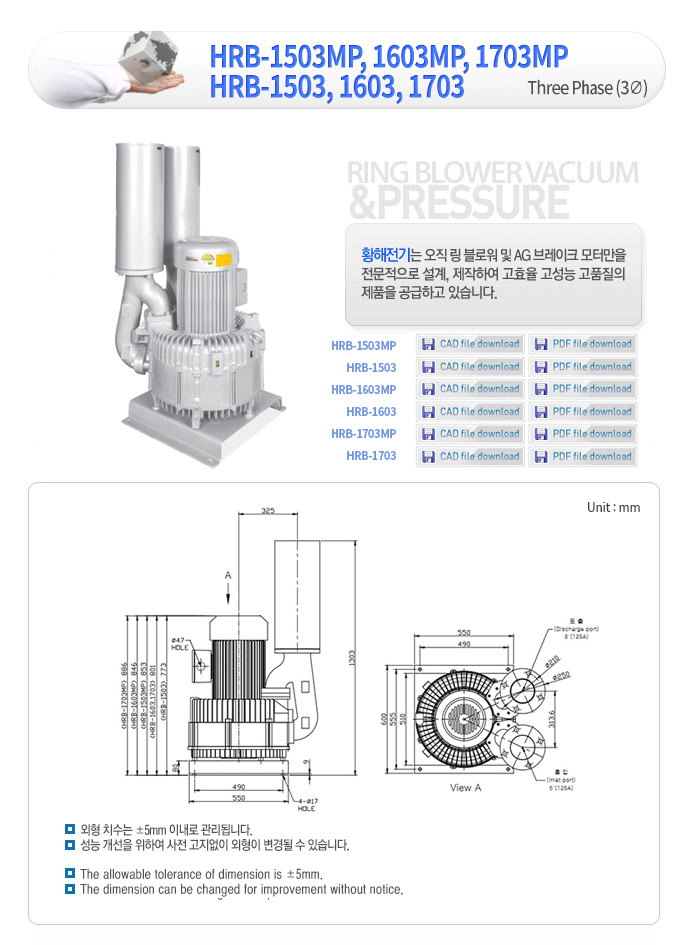

  HRB-1503MP HRB-1503 HRB-1603MP HRB-1603 HRB-1703MP HRB-1703
50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz
»ó PHASE 3 3 3 3 3 3
¸ðÅÍ
MOTOR		 HP - 24.7 20.7 24.7 - 30.0 24.7 30.0 - 40.0 33.5 40.0
Kw - 18.5 15.5 18.5 - 22.7 18.5 22.7 - 30.0 25.0 30.0
ÅäÃâ PRESSURE mmAq - 1200 1300 1200 - 1800 2000 1800 - 2300 2600 2300
ÈíÀÔ
VACUUM		 mmAq - 1100 1500 1100 - 1800 2400 1800 - 2500 2800 2500
ÃÖ´ëdz·®
MAX .
AIR FLOW		 §©/min - 40.0 33.0 40.0 - 40.0 33.0 40.0 - 40.0 33.0 40.0
Àü·ù
CURRENT		 220V A - 65.8 50.0 65.5 - 74.5 65.0 74.3 - 91.6 75.0 91.8
380V A - 38.0 28.8 37.8 - 43.0 37.5 42.9 - 52.9 43.3 53.0
¼ÒÀ½
SOUND LEVEL		 dB(A) 88 88 88 88 88 88
ÀçÁú MATERIAL IMPELLER Aluminum Aluminum Aluminum Aluminum Aluminum Aluminum
CASING Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron Cast Iron
º£¾î¸µ BEARING FRONT 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
MIDDLE - - - - - -
REAR 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3 6308ZC3
¹«°Ô
WEIGHT		 Kg 385 385 400 400 410 410
±âµ¿°è±Þ
STARTING CLASS		 H H H H H H
Àý¿¬°è±Þ
INSULATION CLASS		 F F F F F F
