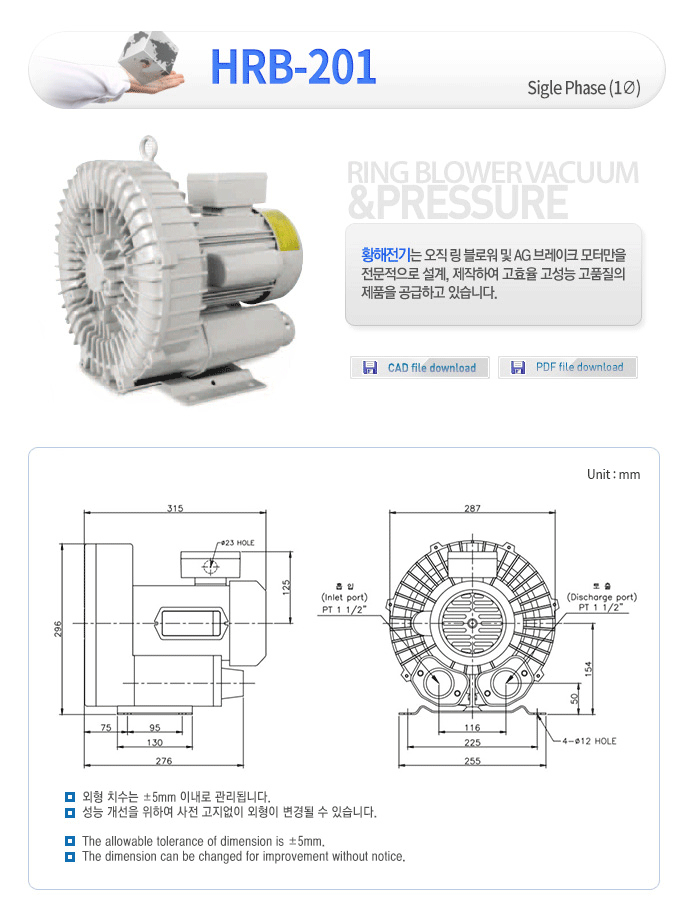

  HRB-201
50Hz 60Hz
상 PHASE 1
모터 MOTOR HP 0.85 1.0
Kw 0.63 0.75

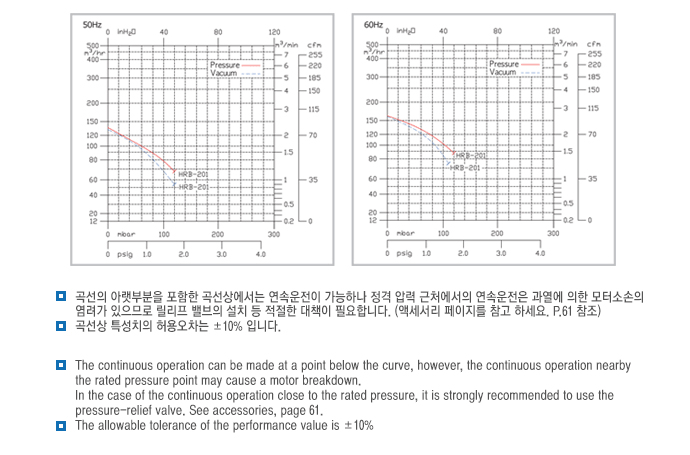

토출 PRESSURE mmAq 1200 1200
흡입 VACUUM mmAq 1200 1100
최대풍량 MAX . AIR FLOW ㎥/min 2.3 2.9
전류 CURRENT 220V A 5.2 6.3
소음 SOUND LEVEL dB(A) 66
재질 MATERIAL IMPELLER Aluminum
CASING Aluminum
베어링 BEARING FRONT 6204ZC3
MIDDLE -
REAR 6203ZZC3
무게 WEIGHT Kg 20
절연계급 INSULATION CLASS F
