W-20
 W-25
 W-30
 W-35
 W-45
 W-60
 W-70
 W-HORIZONTAL TYPE

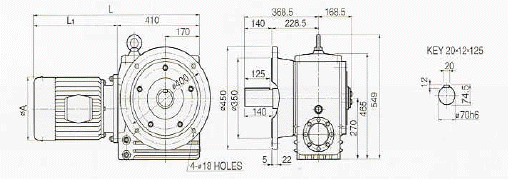

 VERTICAL TYPE

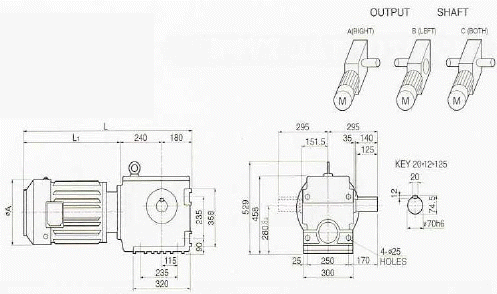

HORIZONTAL TYPE

TYPE
OUTPUT
RATION
L1
L
ØA
WEIGHT(KG)
W70
3.7kw(5HP)
1/75,90,120,150,180
336
757
229
214
5.5kw(7.5HP)
1/40,50,60
425
846
248
231
7.5kw(10HP)
1/10,20,30
447
868
248
238

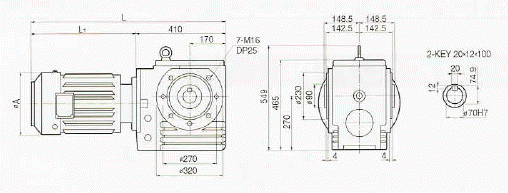

HOLLOW SHAFT TYPE


VERTICAL TYPE

TYPE
OUTPUT
RATION
L1
L
ØA
WEIGHT(KG)
W70
3.7kw(5HP)
1/75,90,120,150,180
336
750
229
236
5.5kw(7.5HP)
1/40,50,60
425
839
248
253
7.5kw(10HP)
1/10,20,30
447
861
248
260
