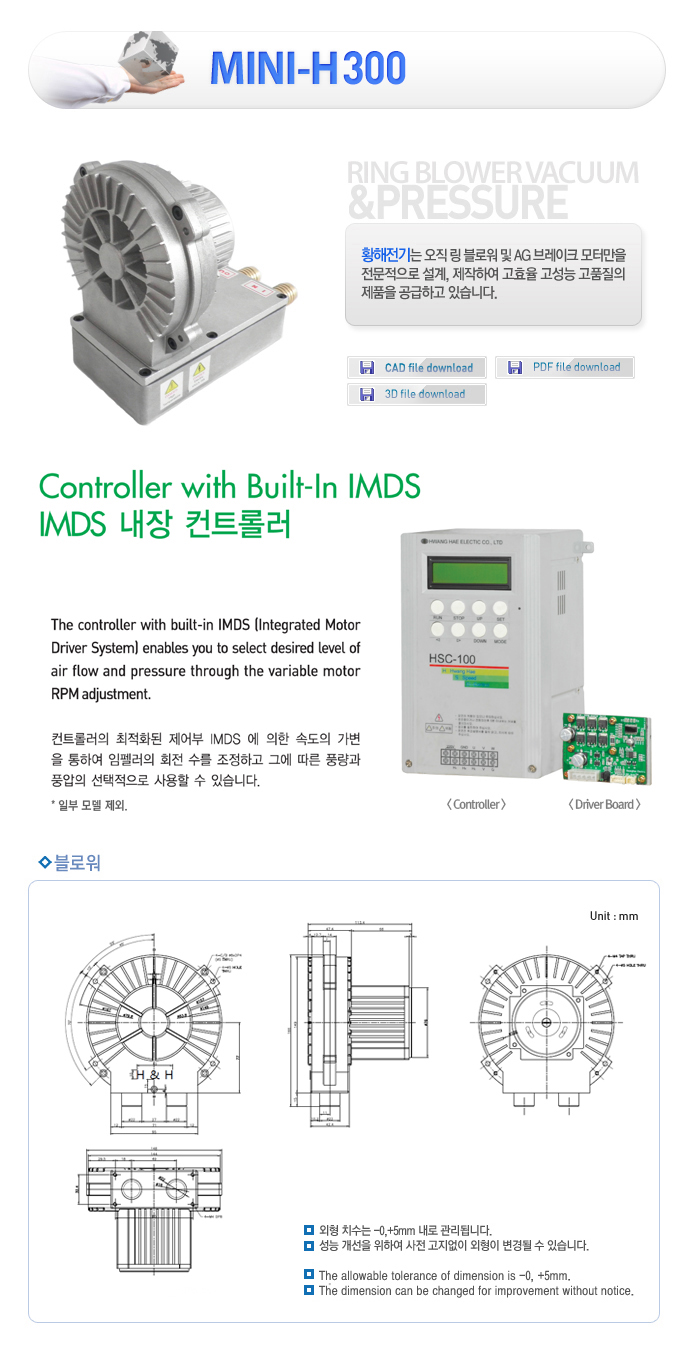

W Vdc A rpm W Vdc A rpm
MINI-H100 46 20 2.22 6750 90 24 3.8 8300
MINI-H200 82 19 4.3 7166 230 24 9.8 8500
MINI-H300 190 19 10 7800 550 24 16.5 9000
MINI-H400 320 19 17.5 7100 900 24 35 9000

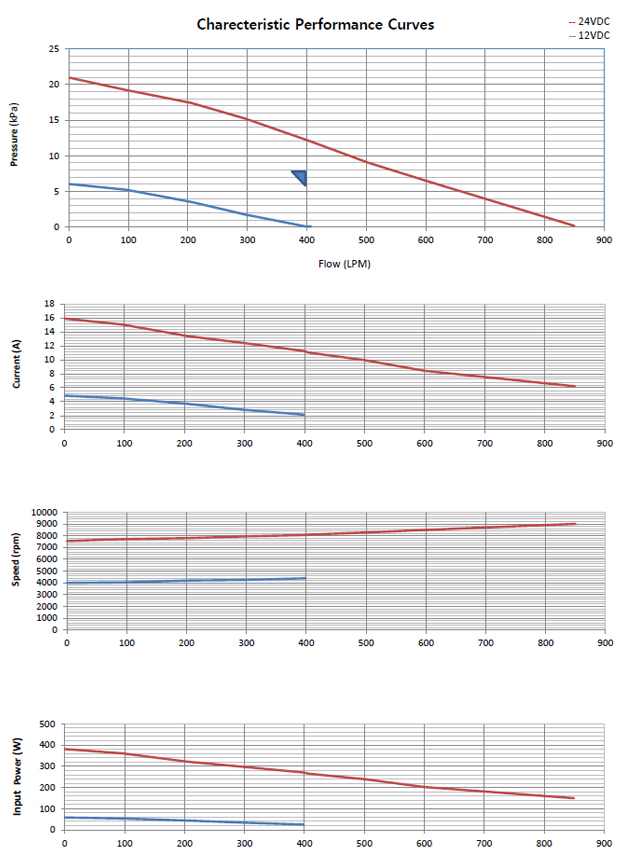

LPM kPa LPM kPa Kg LPM kPa dB(A) Kg
MINI-H100 130 5 300 8 1.1 260 8 53 1.8
MINI-H200 260 5 500 14 1.6 450 14 56 2.8
MINI-H300 400 8 850 19 2.5 650 16 61 4.1
MINI-H400 600 10 1050 24 4.1 950 22 62 6.2


ELECTRICAL DATA
RATED VOLTAGE 24 VDC
MAX OUTPUT CURRENT 30 A
OPERATING TEMPERATURE -20℃~ 105℃
MOTOR DRIVE FREQUENCY 22.5 KHz
SPEED CONTROL VOLTAGE 0 ~ 10 VDC


　　　　-Temperature : Working Air 0℃ to 40℃, Ambient Air 0℃ to 40℃.
　　　　- RPM can be controlled by the input voltage.
　　　　- When the blower is used for vacuuming, there is an approximate reduction of 5% in the performance.
　　　　- Hard Mounting cvan be made by clamping around the motor's AL casing.
　　　　- 2-wire power connection. (Yellow : (+) DC, Black : (-) DC), Improper connection will damage the blower.


　　　　
